LED Flood Light
High-Power LED Stadium Floodlights 250W-2000W | ARTLITEGROUP

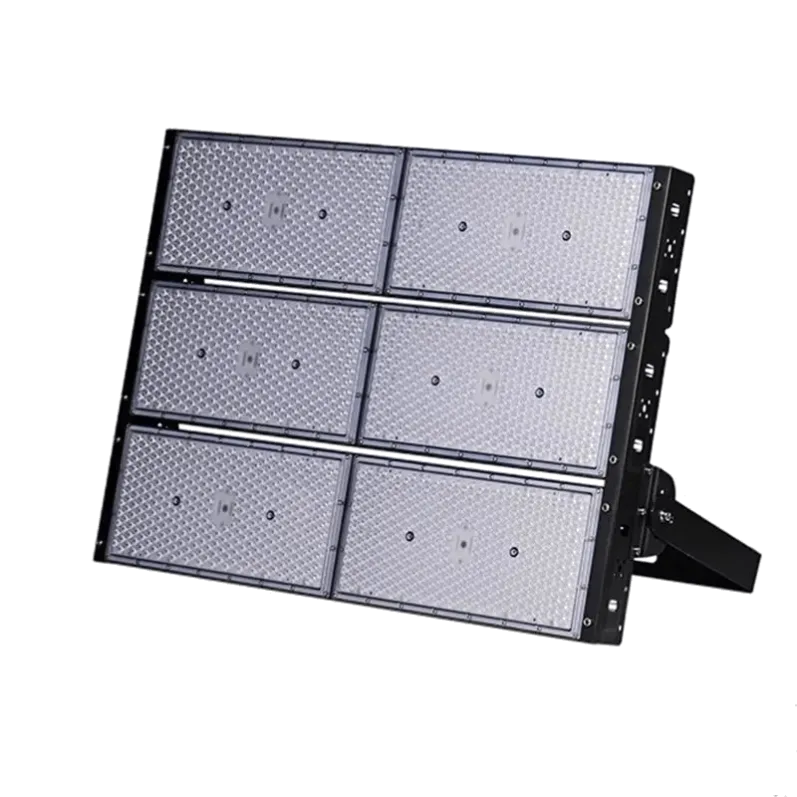

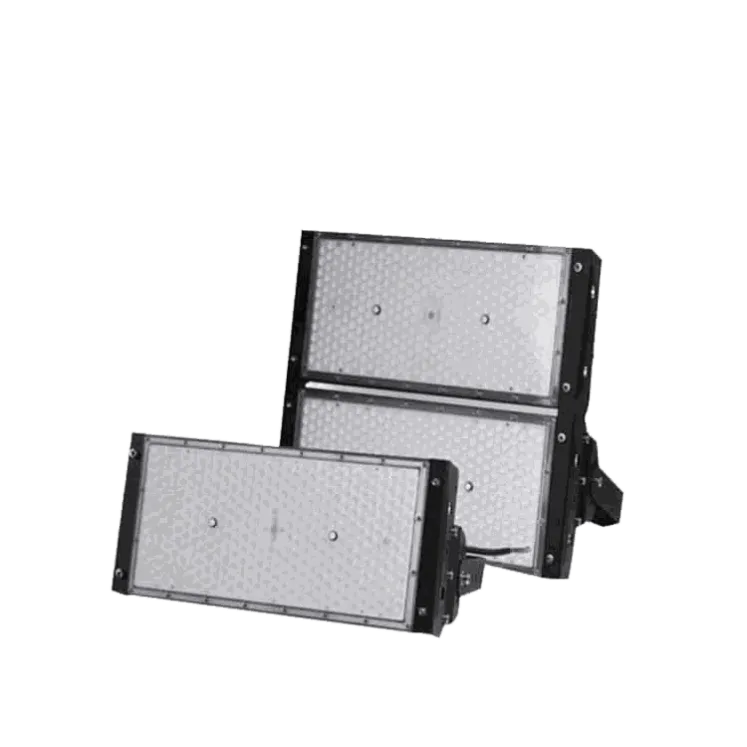

The BZ-FZ-SA Series by ARTLITE GROUP offers high-performance, 150lm/W LED sports lighting for stadiums and arenas. Its modular design scales from 250W up to 2000W for high-mast needs. Featuring an anti-glare PC lens and optional shading cover, it delivers uniform, bright, and soft light. This advanced optical control minimizes spill light and glare, creating an optimal environment for players, spectators, and HD broadcasting.
Specifications
- Power
- 250W-2000W (BZ-FL-250W-MB to BZ-FL-2000W-MB)
- Efficacy
- 130-160lm/W
- LED qty
- 343-2744pcs
- IP grade
- IP66
- Beam angle
- 60°/90°/75*150°
- Voltage
- AC100-265V
Model | Power | LED QTY | Voltage | IP Grade | Beam Angle |
BZ-FL-250W-SA | 250W±5% | 343pcs | AC100-265V | IP66 | 60/90/75*150° |
BZ-FL-500W-SA | 500W±5% | 686pcs | AC100-265V | IP66 | 60/90/75*150° |
BZ-FL-750W-SA | 750W±5% | 1029pcs | AC100-265V | IP66 | 60/90/75*150° |
BZ-FL-1000W-SA | 1000W±5% | 1372pcs | AC100-265V | IP66 | 60/90/75*150° |
BZ-FL-1500W-SA | 1500W±5% | 2178pcs | AC100-265V | IP66 | 60/90/75*150° |
BZ-FL-2000W-SA | 2000W±5% | 2744pcs | AC100-265V | IP66 | 60/90/75*150° |
Technical Specifications
Parameter | Premium Standard Configuration |
|---|---|
Brand / Manufacturer | ARTLITE GROUP |
Product Series | BZ-FZ-SA Anti-Glare Modular System |
Housing Material | Heavy-duty Die-cast Aluminum Body |
Surface Finish | Corrosion-resistant Matt Black Coating |
Light Source Type | Premium Lumileds SMD3030 LED Chips |
Luminous Efficacy | High-efficiency 130 - 150 lm/W Output |
Available Beam Angles | 25° / 45° / 60° / 90° Precision Optics |
Power Factor (PF) | > 0.95 (Energy-efficient Performance) |
LED Driver Options | Top-tier Meanwell / Philips Drivers |
Input Voltage Range | 120-277VAC, 50/60Hz |
Total Harmonic Distortion | THD < 10% |
Surge Protection Device | Built-in 6-10KV (Upgradable to 10KV/20KV SPD) |
Rated Operational Life | > 50,000 Hours (L70) |
IP & IK Protection Ratings | IP66 Weatherproof & IK08 Impact Protection |
Ambient Working Temp | Extreme Environment Capable: -30°C to +55°C |
Product Warranty | Professional 3 / 5 Year Warranty Options |
Compliance & Certificates | Fully Certified CE & RoHS Compliant |
Advanced Customization Options
Enhanced Surge Mitigation: Optional heavy-duty 10KV or 20KV Surge Protection Devices (SPD) for lightning-prone areas.

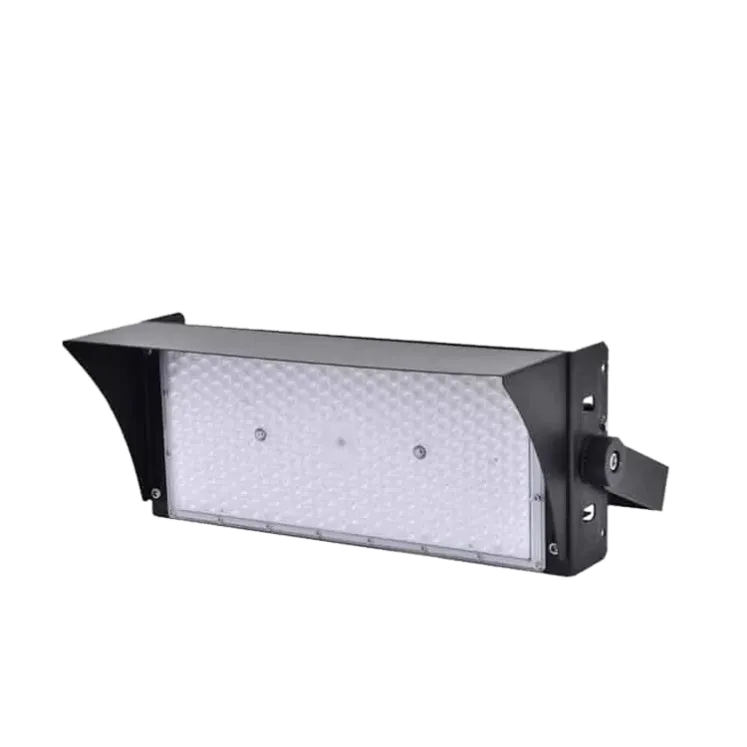

Precision Glare Reduction: Add-on shading covers to strictly control light pollution and satisfy municipal dark-sky regulations.
Smart Dimming Protocols: Seamless integration with PWM, 0-10V, and intelligent DALI dimming systems for smart city integration.
Emergency Backup Systems: Integrated 15W - 30W emergency battery kits offering 1 to 2 hours of continuous backup operation during power grid failures.
Targeted Applications & Project Capabilities
Elite Sports Venues: Tailored stadium lighting solutions for professional football fields, tennis courts, rugby pitches, and outdoor basketball arenas.
High-Mast Infrastructure: Ideal for large plazas, municipal airports, seaport terminals, and expansive logistical hubs.
Industrial & Construction Sites: Robust, high-intensity project lamps engineered to withstand rugged construction environments and temporary job sites.
Industry Insights & Frequently Asked Questions (FAQ)
Q: Why are ARTLITE GROUP stadium floodlights preferred over traditional metal halide fixtures?
A: Modern sports arenas and large outdoor venues require exceptional clarity and energy efficiency. ARTLITE GROUP’s LED stadium floodlights deliver up to 150lm/W, drastically cutting energy consumption by up to 60-70% compared to legacy metal halide lamps. Furthermore, our BZ-FZ-SA series features instant-on capability, superior color rendering (CRI), and a 50,000-hour lifespan that eliminates frequent, costly bulb replacements on high-mast poles.
Q: How does anti-glare technology impact sports lighting quality?
A: Glare is a major hazard in fast-paced sports like football, tennis, and basketball. ARTLITE GROUP utilizes a proprietary combination of anti-glare PC lenses and physical shading covers. This setup diffuses harsh light points into a uniform, high-lumen beam profile. It prevents blinding players mid-game, ensures spectators enjoy a clear view, and eliminates flicker for HD TV broadcasting and slow-motion replays.
Ordering Guidance
Send your project requirements - target lumen package, ceiling type, cut-out schedule or control protocol - through the contact form, and the ARTLITE team will confirm the exact model, options and quotation. OEM/ODM customization is available.
